    Working Stroke 50mm Air Duct Machine Automatic Apron Coughing Machine 5KVA

    Ask Lasest Price
    Brand Name : RUILIAN
    Model Number : RJQ-100B
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1+ devices+a month
    • Product Details
    • Company Profile

    Working Stroke 50mm Air Duct Machine Automatic Apron Coughing Machine 5KVA

    Air Duct Machine Automatic apron coughing machine


    Machining diameterØ80mm~Ø300mm(400mm Need to be customized)
    Processingplate type

    Low carbon sheet steel

    Galvanized sheet steel

    Stainless steel sheet

    Working stroke50mm
    Machining thicknessLow carbon sheet steel:0.4~0.8mm
     Galvanized sheet steel:0.4~0.8mm
     Stainless steel sheet:0.4~0.6mm
    Type of product processingTransfer Duct /Pressed Elow /Tee
    Processing speed≤6/min
    Spindle speed650rpm/min
    Compressed air0.8Mpa 600L/min ≤25°C
    power5KVA
    Net weight1.5T

    Air Duct Machine Automatic apron coughing machine


    Key words

    Automatic apron coughing machine

    Curved ventilation duct

    Plug-in air duct

    Metal cold bending

    T tee

    Product of Air Duct Machine Automatic apron coughing machine


    Automatic apron coughing machine

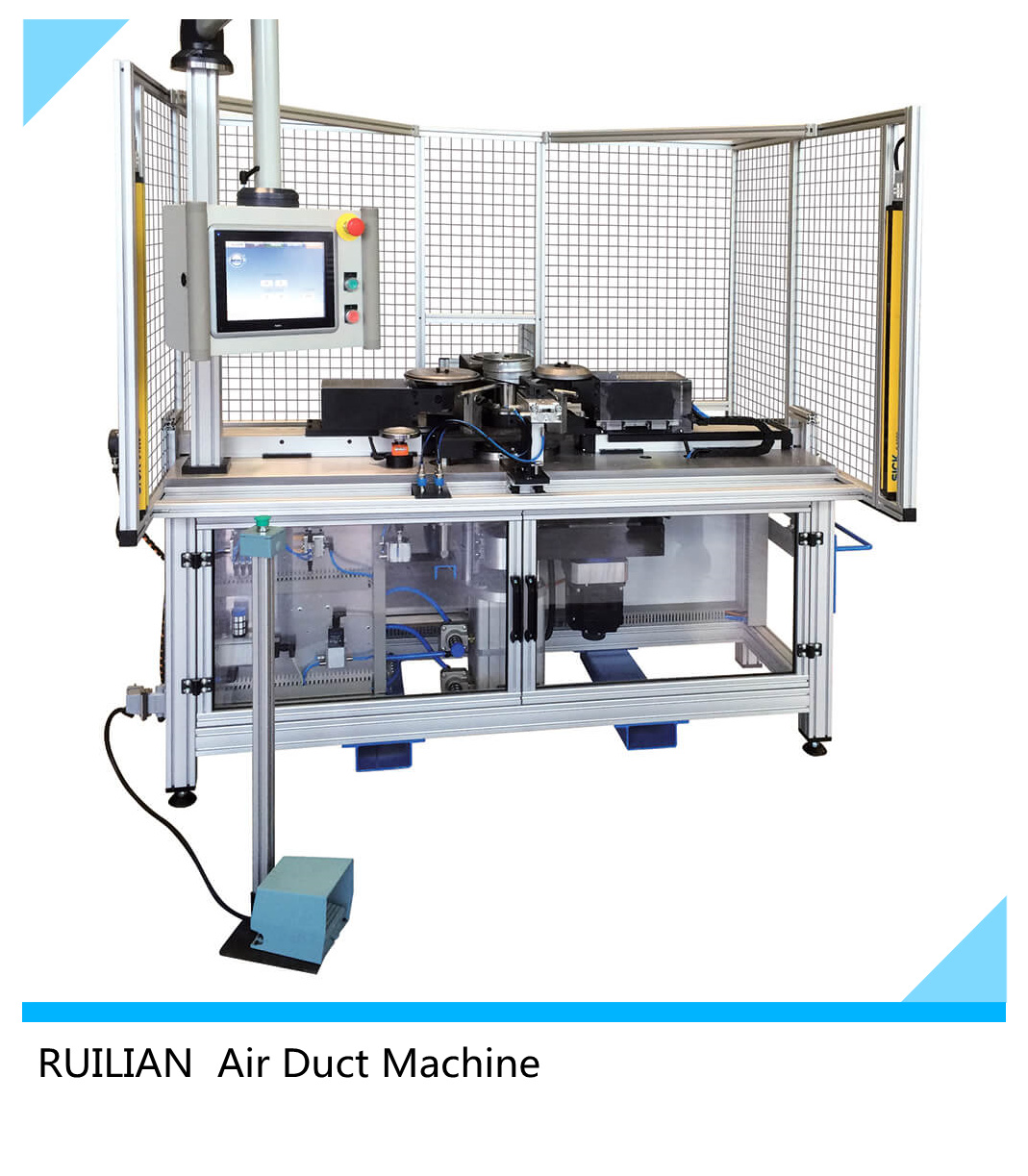

    RJQ-100B is the basic model of RJQ-100 automatic apron machine, its operation process can be unattended, but when it is necessary to adjust the equipment, when changing product specifications, it needs to manually adjust the flanging, necking and occlusal compression the corresponding position of the wheel. The automatic apron forming machine is used in conjunction with the RF-80J-1/2 air duct arc seam welding machine to meet the occlusion requirements of the air duct stamping elbow sealing strip and the welding stamping elbow.RJQ-100B automatic apron forming machine can complete the process steps of stamping elbow flanging, necking, rib expansion, apron occlusion in sequence on the working platform. It can process stamping elbows, welded straight pipes and air duct tees.

    Equipment man-machine interface control, welding control unit and other aspects are all independently developed and designed, and the unique 300 processing models can meet the unique needs of different environmental processes to the greatest extent.

    Production efficiency is comparable to the same type of products in the United States and abroad, and the design is easier to use in terms of control, ensuring that the high-speed and high-efficiency replacement and maintenance characteristics of the model are also taken into account.

    The automatic RJQ-100B is a highly integrated cold bending process machine. It is widely used in the processing of industrial air duct accessories, shipbuilding and special requirements for land use air ducts. It's a modern air duct. It is a fundamental processing equipment indispensable in manufacturing. Its excellent performance, superior processing quality and efficient processing speed are important process equipment in the manufacture of products for large-scale air duct processing companies.
